Uni 1.35 DZ H plus maxi

Internal aggregate

Brochure
Data sheet
(pdf 1036 KB)
Support Range
Support range
(pdf 48 KB)
Foundation Plan
Foundation plan
(pdf 108 KB)

Technical Data

0
Capacity
(kg)
  • Capacity 3.500 kg
  • Effective raise height 2.045 mm
  • Drive over height 60 mm
  • Piston diameter 123 mm
  • Installation depth 2.408 mm
  • Motor output 3,0 kW
  • Power connector 400/16 V/A
  • Cable length to control 11 m
  • Lifting / lowering time ≈ 35 sec.

Product information

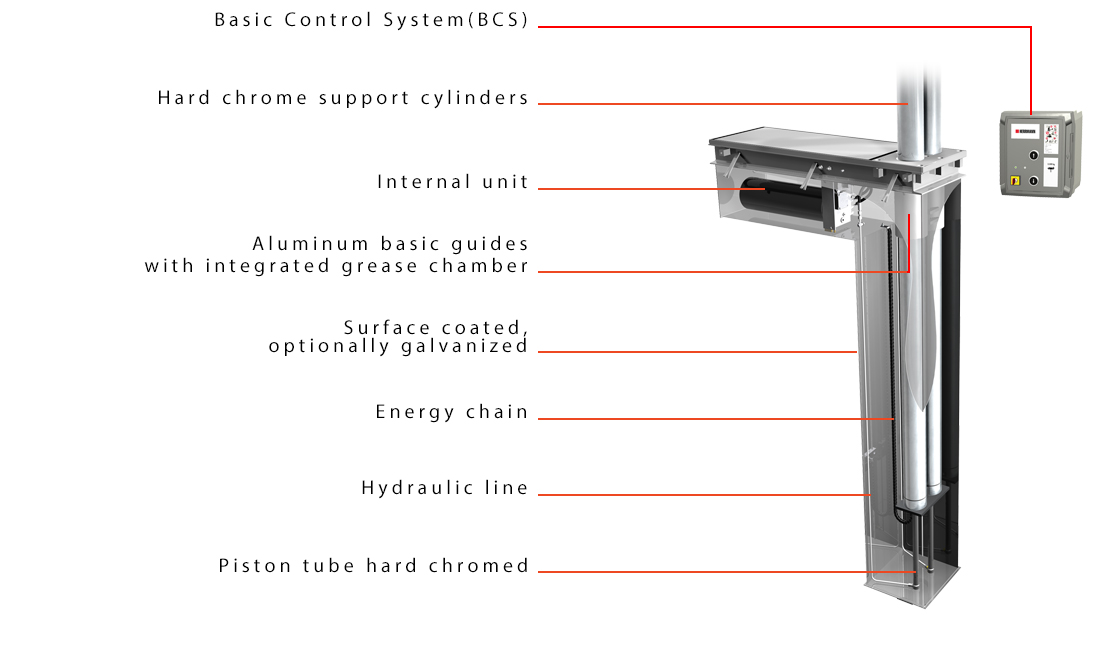

Installation cassette with internal unit

Variants


Galvanized cassette

External aggregate

Accessories
