Uni 1.35 DZ H plus

External aggregate

Brochure
Data sheet
(pdf 1637 KB)
Support Range
Support range
(pdf 45 KB)
Foundation Plan
Foundation plan
(pdf 107 KB)
Foundation Plan
Foundation plan
Area grid
(pdf 107 KB)

Technical Data

0
Capacity
(kg)
  • Capacity 3.500 kg
  • Effective raise height 2.045 mm
  • Drive over height 60 mm
  • Piston diameter 123 mm
  • Installation depth 2.408 mm
  • Motor output 3,0 kW
  • Power connector 400/16 V/A
  • Cable length to control 11 m
  • Lifting / lowering time ≈ 35 sec.

Product information

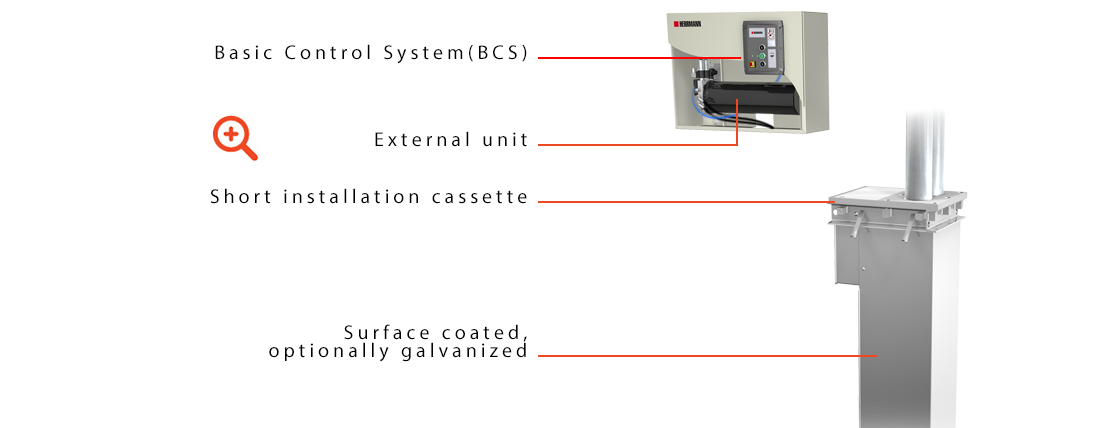

External unit as wall mounting

Prodct Images

Variants


Galvanized cassette

Internal aggregate

Accessories
