Alu Track 2.35 Duplo Swing

Surface mounted

Brochure
Data sheet
(pdf 2861 KB)
Support Range
Support range
(pdf 107 KB)
Foundation Plan
Foundation plan
(pdf 97 KB)

Technical Data

0
Capacity
(kg)
0
Piston distance
(mm)
  • Capacity Platform 3.500 kg
  • Capacity Wheel free lift 3.500 kg
  • Piston distance 1.500 mm
  • Effective raise height Platform 2.008 mm
  • Wheel free lift 2.000 mm
  • Platform length 4.400 mm
  • Platform height 180 mm
  • Move in height Wheel free lift 90 mm
  • Piston diameter 123 mm
  • Installation depth 2.443 mm
  • Motor output 3,0 kW
  • Power connector 400/16 V/A
  • Cable length to control 11 m
  • Lifting / lowering time ≈ 35 sec.

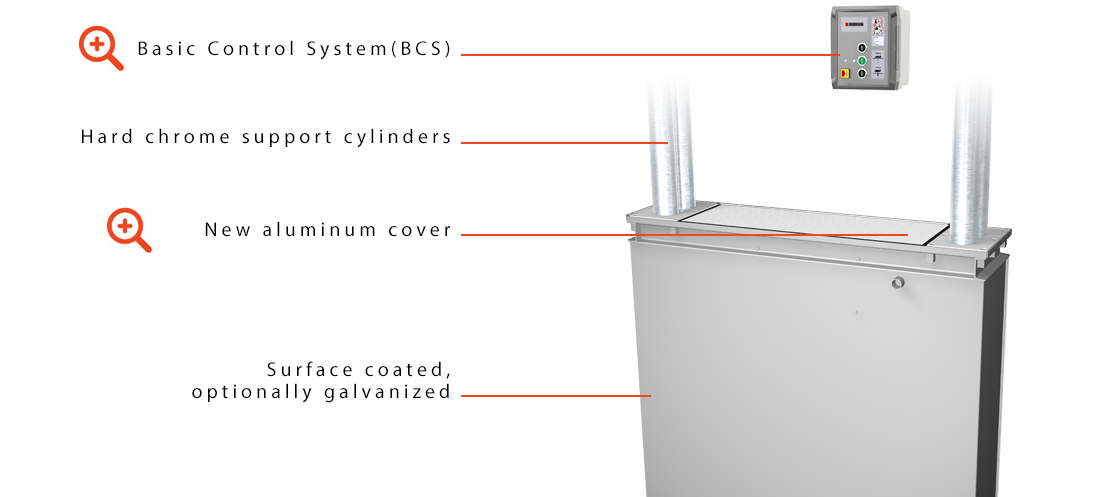

Product information

Prodct Images Prodct Images

Variants


Galvanized cassette

Flush mounted H-frame

Flush mounted rectangle frame
